Cycling a battery 40 times with a constant current constant voltage (cccv) control
julia
using BattMo, GLMakieWe use the setup provided in the p2d_40.json file. In particular, see the data under the Control key.
julia
file_path_cell = parameter_file_path("cell_parameters", "chen_2020.json")
file_path_cycling = parameter_file_path("cycling_protocols", "cccv.json")
cell_parameters = load_cell_parameters(; from_file_path = file_path_cell)
cycling_protocol = load_cycling_protocol(; from_file_path = file_path_cycling)
model = LithiumIonBattery();
cycling_protocol["TotalNumberOfCycles"] = 10
sim = Simulation(model, cell_parameters, cycling_protocol);
output = solve(sim;)✔️ Validation of ModelSettings passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of CellParameters passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of CyclingProtocol passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of SimulationSettings passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of SolverSettings passed: No issues found.
──────────────────────────────────────────────────
Jutul: Simulating 2 days, 2 hours as 3600 report steps
╭────────────────┬────────────┬────────────────┬─────────────╮
│ Iteration type │ Avg/step │ Avg/ministep │ Total │
│ │ 2599 steps │ 2717 ministeps │ (wasted) │
├────────────────┼────────────┼────────────────┼─────────────┤
│ Newton │ 2.73451 │ 2.61575 │ 7107 (1620) │
│ Linearization │ 3.77992 │ 3.61575 │ 9824 (1701) │
│ Linear solver │ 2.73451 │ 2.61575 │ 7107 (1620) │
│ Precond apply │ 0.0 │ 0.0 │ 0 (0) │
╰────────────────┴────────────┴────────────────┴─────────────╯
╭───────────────┬────────┬────────────┬─────────╮
│ Timing type │ Each │ Relative │ Total │
│ │ ms │ Percentage │ s │
├───────────────┼────────┼────────────┼─────────┤
│ Properties │ 0.0783 │ 2.68 % │ 0.5563 │
│ Equations │ 1.1857 │ 56.08 % │ 11.6486 │
│ Assembly │ 0.1251 │ 5.92 % │ 1.2289 │
│ Linear solve │ 0.4897 │ 16.75 % │ 3.4800 │
│ Linear setup │ 0.0000 │ 0.00 % │ 0.0000 │
│ Precond apply │ 0.0000 │ 0.00 % │ 0.0000 │
│ Update │ 0.0735 │ 2.52 % │ 0.5226 │
│ Convergence │ 0.1541 │ 7.29 % │ 1.5139 │
│ Input/Output │ 0.0285 │ 0.37 % │ 0.0773 │
│ Other │ 0.2455 │ 8.40 % │ 1.7445 │
├───────────────┼────────┼────────────┼─────────┤
│ Total │ 2.9228 │ 100.00 % │ 20.7721 │
╰───────────────┴────────┴────────────┴─────────╯Plot the results

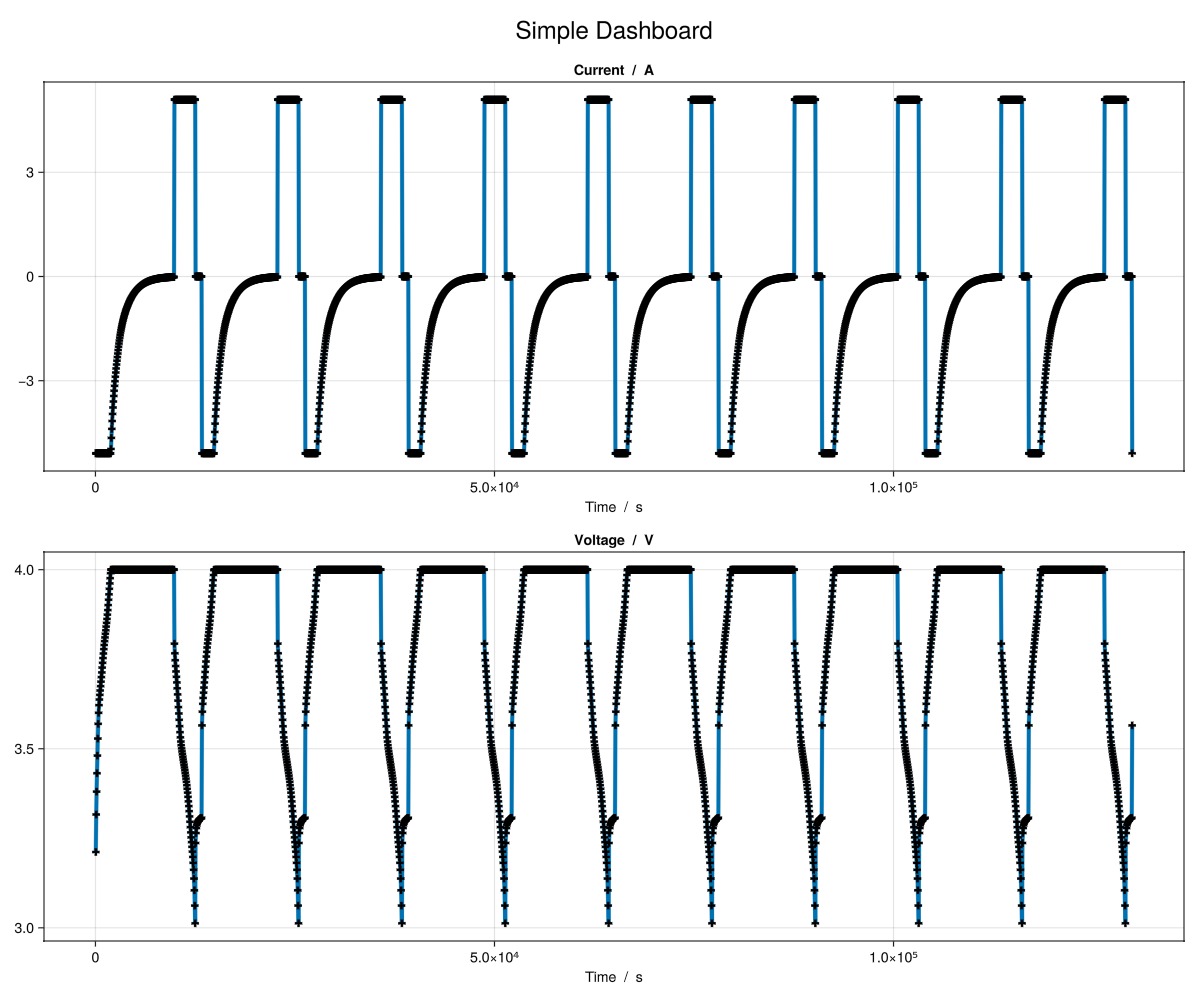

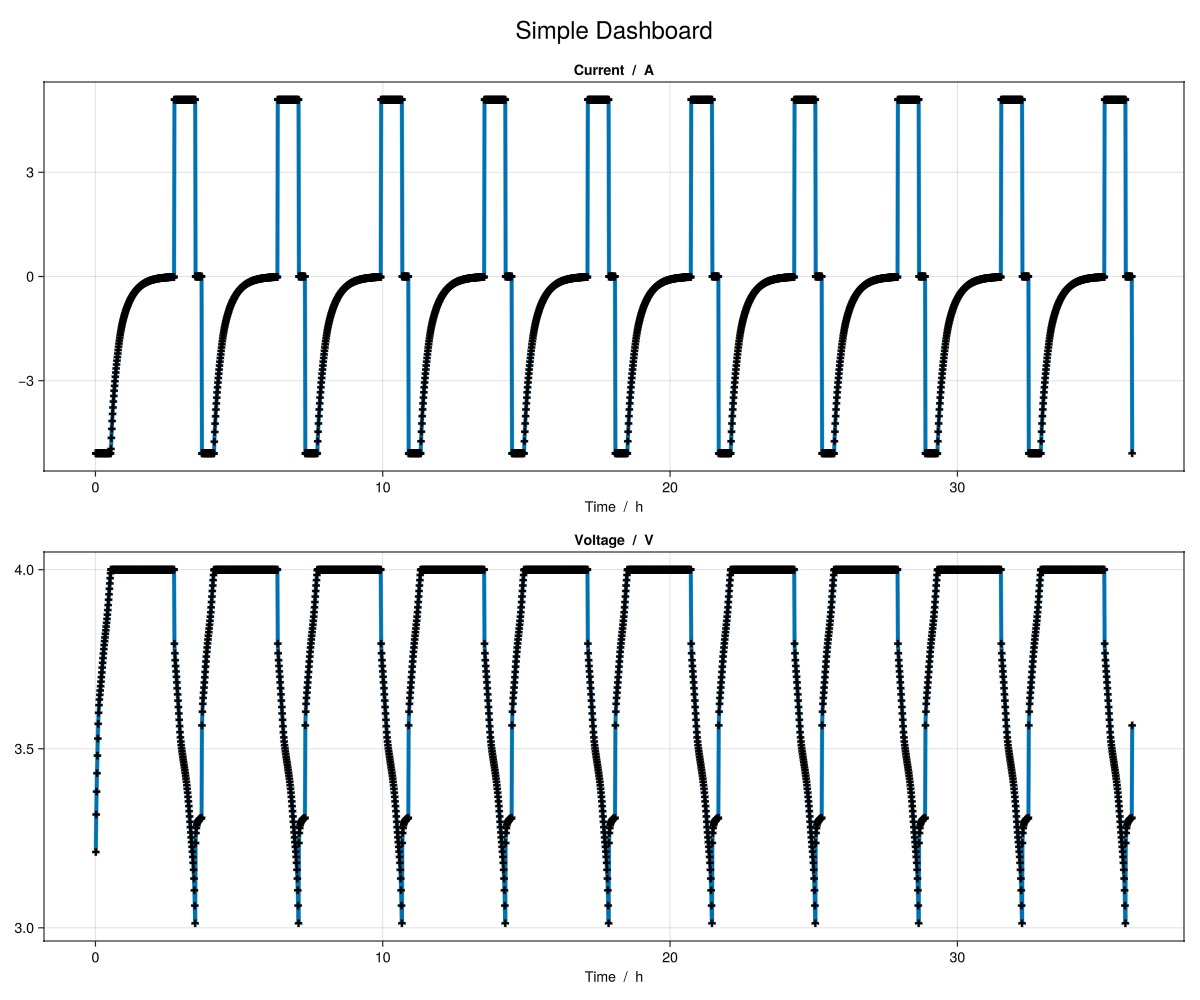

We can plot a simple voltage current dashboard
julia
plot_dashboard(output, plot_type = "simple")
Or plot specific variables
julia
plot_output(output, ["DischargeCapacity vs CycleIndex"])

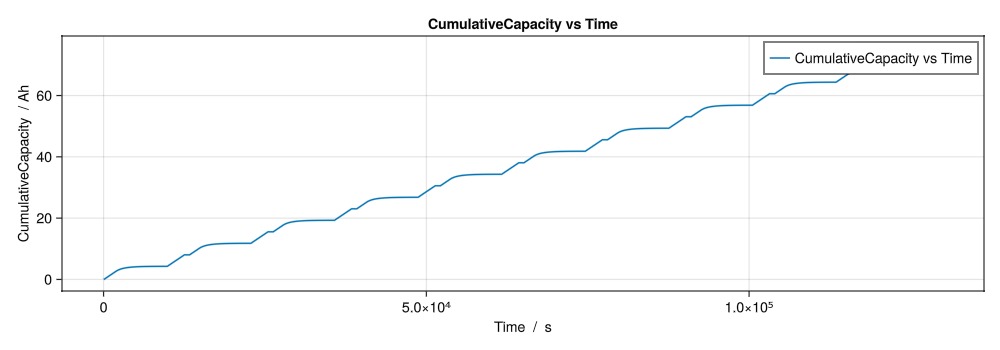

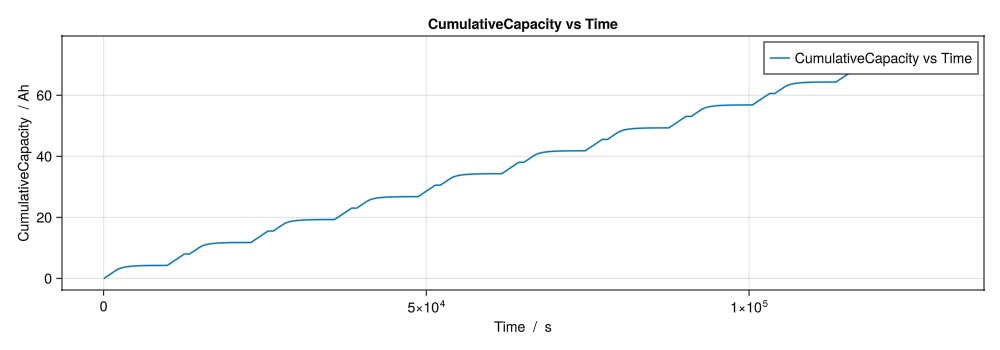

plot_output(output, ["CumulativeCapacity vs Time"])
We can check in the overview which variables are available and can be plotted against each other
julia
print_info(output)
Case: TIME_SERIES
================================================================================================================================================================
Variable Unit Shape
----------------------------------------------------------------------------------------------------------------------------------------------------------------
CumulativeCapacity Ah (nTime,)
Current A (nTime,)
CycleNumber 1 (nTime,)
NetCapacity Ah (nTime,)
Time s (nTime,)
Voltage V (nTime,)
================================================================================================================================================================
Case: METRICS
================================================================================================================================================================
Variable Unit Shape
----------------------------------------------------------------------------------------------------------------------------------------------------------------
ChargeCapacity Ah (nCycleIndex,)
ChargeEnergy J (nCycleIndex,)
CycleIndex 1 (nCycleIndex,)
DischargeCapacity Ah (nCycleIndex,)
DischargeEnergy J (nCycleIndex,)
RoundTripEfficiency % (nCycleIndex,)
================================================================================================================================================================
Case: STATES
================================================================================================================================================================
Variable Unit Shape
----------------------------------------------------------------------------------------------------------------------------------------------------------------
ElectrolyteCharge C (nTime, nPosition)
ElectrolyteConcentration mol·m⁻³ (nTime, nPosition)
ElectrolyteConductivity S·m⁻¹ (nTime, nPosition)
ElectrolyteDiffusivity m²·s (nTime, nPosition)
ElectrolyteMass g (nTime, nPosition)
ElectrolytePotential V (nTime, nPosition)
NegativeElectrodeActiveMaterialCharge C (nTime, nPosition)
NegativeElectrodeActiveMaterialDiffusionCoefficient m²·s⁻¹ (nTime, nPosition)
NegativeElectrodeActiveMaterialOpenCircuitPotential mol·m⁻²·s⁻¹ (nTime, nPosition)
NegativeElectrodeActiveMaterialParticleConcentration mol·L⁻¹ (nTime, nPosition, nNegativeElectrodeActiveMaterialRadius)
NegativeElectrodeActiveMaterialPotential V (nTime, nPosition)
NegativeElectrodeActiveMaterialRadius m (nNegativeElectrodeActiveMaterialRadius,)
NegativeElectrodeActiveMaterialReactionRateConstant V (nTime, nPosition)
NegativeElectrodeActiveMaterialSurfaceConcentration mol·L⁻¹ (nTime, nPosition)
NegativeElectrodeActiveMaterialTemperature T (nTime, nPosition)
Position m (nPosition,)
PositiveElectrodeActiveMaterialCharge C (nTime, nPosition)
PositiveElectrodeActiveMaterialDiffusionCoefficient m²·s⁻¹ (nTime, nPosition)
PositiveElectrodeActiveMaterialOpenCircuitPotential V (nTime, nPosition)
PositiveElectrodeActiveMaterialParticleConcentration mol·L⁻¹ (nTime, nPosition, nPositiveElectrodeActiveMaterialRadius)
PositiveElectrodeActiveMaterialPotential V (nTime, nPosition)
PositiveElectrodeActiveMaterialRadius m (nPositiveElectrodeActiveMaterialRadius,)
PositiveElectrodeActiveMaterialReactionRateConstant mol·m⁻²·s⁻¹ (nTime, nPosition)
PositiveElectrodeActiveMaterialSurfaceConcentration mol·L⁻¹ (nTime, nPosition)
PositiveElectrodeActiveMaterialTemperature T (nTime, nPosition)
================================================================================================================================================================Example on GitHub
If you would like to run this example yourself, it can be downloaded from the BattMo.jl GitHub repository as a script.
